Access .Net Web Services via Java Web Services Client

Scenario

Implementation Steps

Create a simple web service via Visual Studio 2008

1. Choose ASP.Net Web Srvice Application


2. Write a HelloWorld method which accept one String paramter, and will return "Hello~"+name.



As you run this asmx file, you will see this page:


If I filled in Albert and submit. I will get "Hello~Albert" in the next page.


You can use this link (http://localhost:3936/Service1.asmx?wsdl) to get its WSDL page.




Build Java client via Eclipse

1. Create a Dynamic Web Project


2. Given a project name and set target runtime. Click Next.


3. Click Next


4. Click Finish. Then you had finished the Dynamic Web Project creation.


5. Create a Web Service Client.


6. Fill in WSDL url link and click Next.


7. Click Finish.


8. Then Eclipse will create these Java classes automatically. (Except TestClient.java)





9. Create a standalone Java


10. Make good use of the proxy class which generate by eclipse automatically.

Run this Java class we mentioned above, you can see "helloMsg=Hello~Albert Guo" in your Eclipse console

Flex Plug-in for Eclipse

Please go to here to download installation file: http://www.adobe.com/cfusion/entitlement/index.cfm?e=flex3email

you can see this download page:

Click the installation file, and you will see this welcome page

click Next

Select "I agree...." and click next

Click next

Choose your eclipse path

Click Next

Click Install

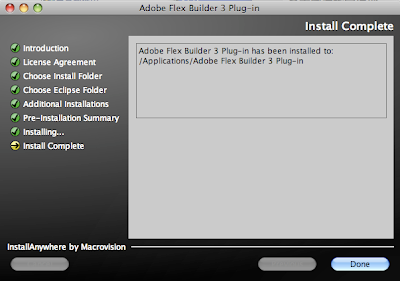

Click Done to finish your installation

Then open your eclipse, and you will see the Flex Builder option in your wizard. Click Next

Call this project as "FlexTest", and click next.

Click next.

Click next.

After FlexTest project had been created, you will see this project in your workspace.

In the FlexTest.mxml, we wrote a simple function to show "Hello Flex" message as user click the button.

DONE....

How many jar files you need to integrate Flex with Spring Framework + Hibernate?

Here is the list:

1. backport-util-concurrent.jar
2. cfgatewayadapter.jar
3. cglib-nodep.jar
4. cglib.jar
5. commons-codec-1.3.jar
6. commons-collections.jar
7. commons-dbcp-1.2.2.jar
8. commons-httpclient-3.0.1.jar
9. commons-logging.jar
10. commons-pool-1.5.4.jar
11. concurrent.jar
12. dom4j.jar
13. flex-messaging-common.jar
14. flex-messaging-core.jar
15. flex-messaging-opt.jar
16. flex-messaging-proxy.jar
17. flex-messaging-remoting.jar
18. hibernate3.jar
19. jackson-core-lgpl-1.1.0.jar
20. jackson-mapper-lgpl-1.1.0.jar
21. jta.jar
22. log4j.jar
23. org.springframework.flex-1.0.1.RELEASE.jar
24. slf4j-api.jar
25. slf4j-log4j12.jar
26. spring-beans.jar
27. spring-web.jar
28. spring-webmvc.jar
29. spring.jar
30. xalan.jar

Unable to locate Spring NamespaceHandler for XML schema namespace [http://www.springframework.org/schema/flex]

Problem

As I integrated flex with spring framework, I got this error message when I start apache tomcat:

1:  2010/1/20 下午 04:25:59 org.apache.catalina.core.ApplicationContext log
2:  資訊: Initializing Spring FrameworkServlet 'spring-flex'
3:  2010/1/20 下午 04:26:00 org.apache.catalina.core.ApplicationContext log
4:  嚴重的: StandardWrapper.Throwable
5:  org.springframework.beans.factory.parsing.BeanDefinitionParsingException: Configuration problem: Unable to locate Spring NamespaceHandler for XML schema namespace [http://www.springframework.org/schema/flex]
6:  Offending resource: ServletContext resource [/WEB-INF/flex-servlet-context.xml]
7:   at org.springframework.beans.factory.parsing.FailFastProblemReporter.error(FailFastProblemReporter.java:68)
8:   at org.springframework.beans.factory.parsing.ReaderContext.error(ReaderContext.java:85)

Solution

This error resulted from I forgot to copy flex-spring integration jar file into WebContent/WEB-INF/lib, you can go to here to download this jar file: http://www.springsource.org/spring-flex

Setup BlazeDS on Tomcat with Flex Builder

1. download BlazeDS from http://opensource.adobe.com/wiki/display/blazeds/BlazeDS/

2. unzip file and extract BlazeDS.war

3. Create a new "Dynamic Web Project" in Flex Builder. Called it "blazeds-server"

define your context root, it will has relationship with step5


Ater creation, you can see your blazeds-server project had been created.



4. Now go back to the folder where you had extracted blazeds.war and import the META-INF and WEB-INF folders from there to the "Webcontent" folder that eclipse had created in the project.

select file system

select all folders under blazeds

Just click "Yes to All" to overwrite all files

5. Open the services-config.xml file within WEB-INF/Flex folder and change entries








6. Now go back to the folder where you had extracted blazeds.war, set these jar files in WEB-INF/lib into your build path








7. Build your project, and deploy to tomcat.




Verify your setup by testing if the amf links are active . Paste the endpoint url you changed on services.xml onto your browser. something like this http://localhost:8080/flex/messagebroker/amf should return you a blank page and not a 404 or 500 error.



8. create a simple java class



9. define this java class into remoting-config.xml







10. NewProject-Flex-select J2ee in application server type.Unselect "Create combined flex/java src folder".Click next










11. Deselect the "Use default location for LCDS " and enter the following.
RootFolder :{youreclipseworkspace}\flex\WebContent\
Root URL:http://localhost:8080/flex/
Context_Root:flex/. Click finish






12. Create a simple mxml




13. Build all and restart the server if its neccessary. RIght click on your mxml and select "Run as Flex application".
Click on the button. You should be getting a pleasant "Hello Flex!" from your server setup :-)
